Suspended Fiberglass Acoustic Panels

The Gold-Green Fiberglass Suspended Acoustic Panel is an innovative spatial sound absorption solution that seamlessly integrates acoustic performance with artistic design.

key word:

Ceiling

Category:

Acoustic Fiberglass Ceiling Tiles

GET IN TOUCH

OTHER PRODUTS

Product Overview

Golden Green Suspended Fiberglass Acoustic Absorbers
An innovative spatial sound-absorbing solution that merges acoustic performance with artistic design. Utilizing a high-density centrifuged glass wool core, these lightweight suspended units are crafted through a specialized molding process and finished with a fire-retardant decorative fabric.
By leveraging a suspended installation, these absorbers form a three-dimensional acoustic barrier, effectively absorbing mid-to-high frequency noise. Simultaneously, their modular design allows for the creation of unique visual effects in the overhead space. They are especially ideal for large-span architectural interiors, providing exceptional noise reduction and a modern artistic statement without occupying any floor area. This solution offers a dual enhancement of both acoustics and aesthetics for a wide range of public and commercial spaces.

Superior Acoustic Performance

● Broadband High-Efficiency Sound Absorption: Noise Reduction Coefficient (NRC) reaches 0.9–1.1, with 40% enhanced absorption efficiency specifically for the 250–4000Hz human voice-sensitive frequency range.

● Three-Dimensional Sound Field Optimization: Suspended design forms a立体吸音阵列 (three-dimensional sound-absorbing array), increasing sound field coverage by 60% compared to traditional flat acoustic materials.

● Aerodynamic Design: Streamlined unit structure with wind load coefficient <0.3, suitable for high-airflow environments (e.g., airports, stadiums).

Artistic Space Design

● Customizable Colors: Utilizing specialized dyeing techniques to achieve diverse color combinations, enhancing spatial depth and dimension.

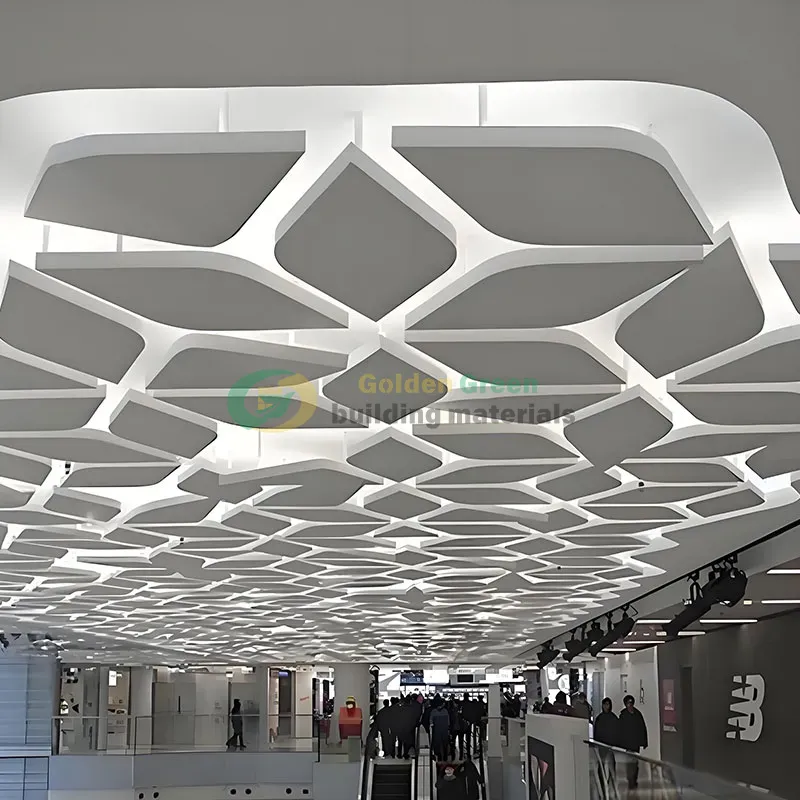

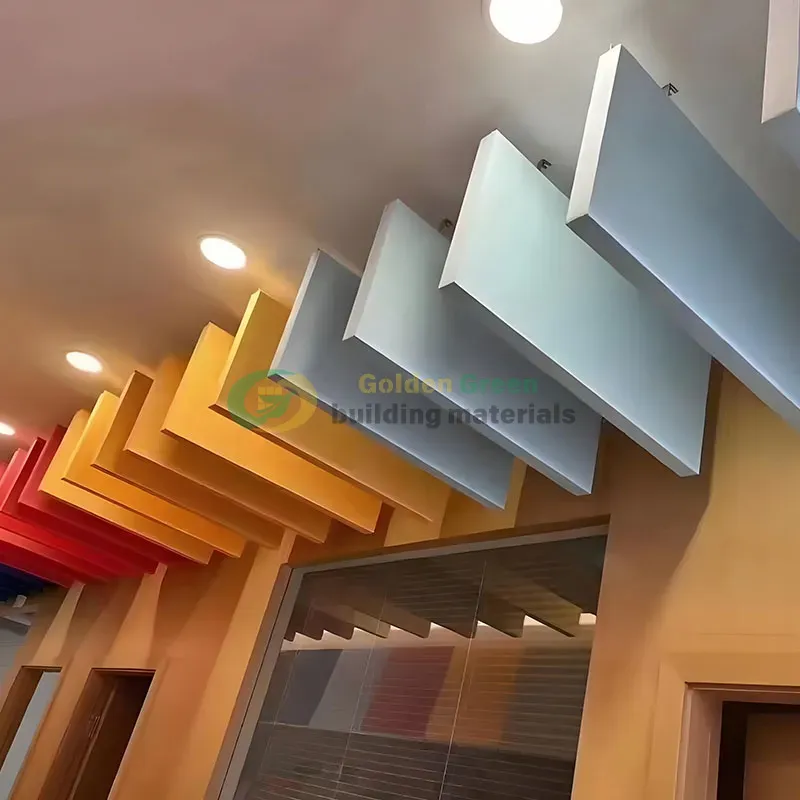

● Modular Combination System: Standard units can be arranged in various configurations (linear, matrix, random) to form bespoke artistic installations.

● Light-Interactive Effects: Surface fabrics exhibit diffuse reflection properties, creating dynamic visual transformations with natural light.

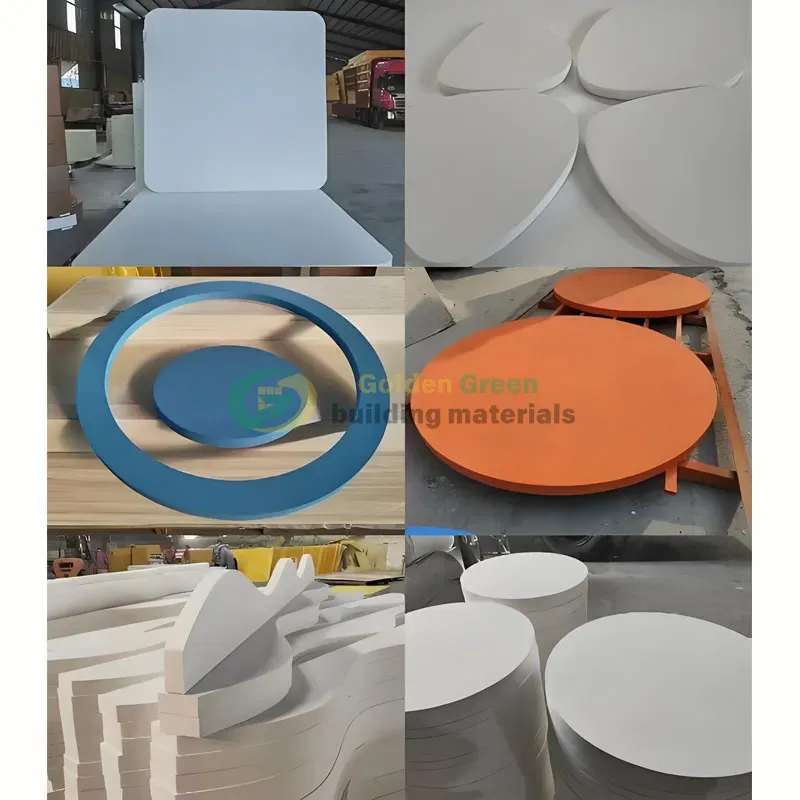

● Customizable Shapes: Crafted to your design specifications, unleashing your creative vision.

Technical Specifications

Material	Fiberglass wool
Color of surface	White (customizable)
Surface	Flame-Retardant Decorative Fabric
Thickness	15、20、25、30、40mm（Customizable thickness）
Size（mm）	Custom sizes available
Moisture resistance	Up to 99% RH
Sound Absorption (NRC)	0.9-1.0
Density	130kg/m3（Special Density can be Supplied）
Fire Performance	Class A
Asbestos content	Asbestos-free (100%)

Flexible Installation and Maintenance

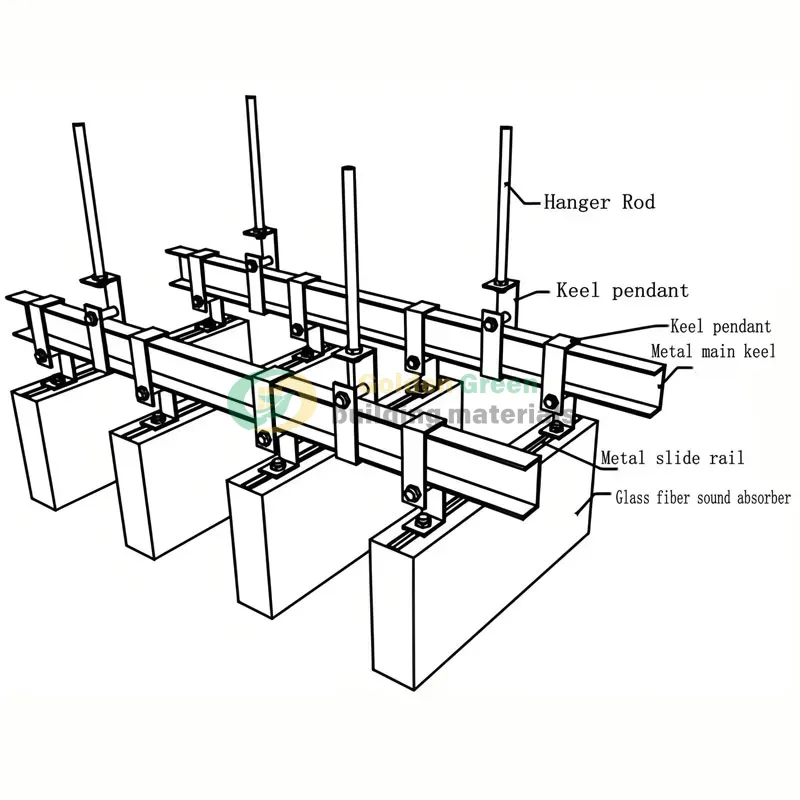

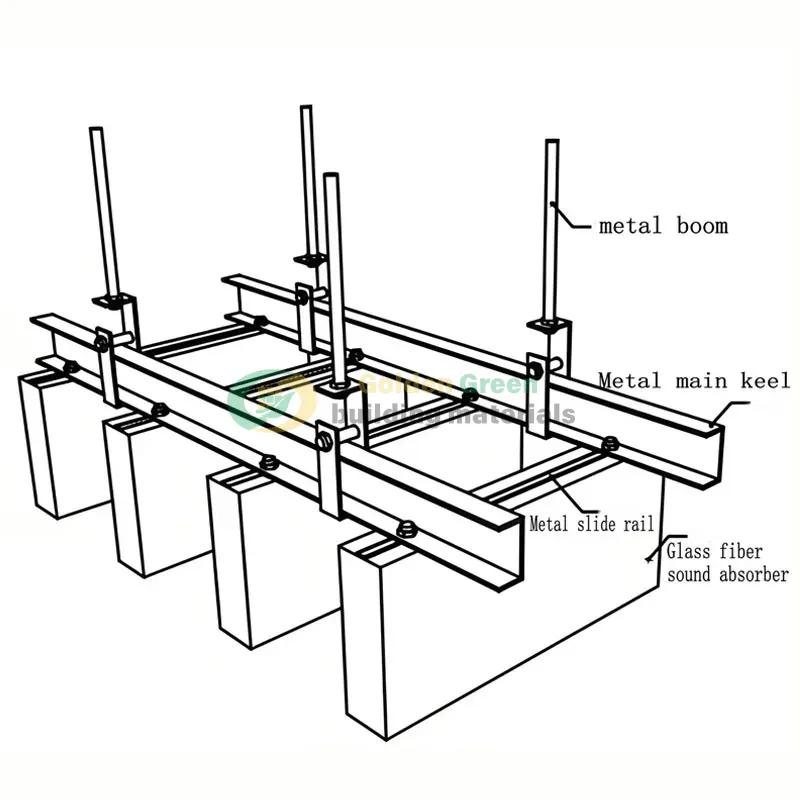

● Quick-Hang System: Patented rotating hook design boosts installation efficiency by 50%, enabling single-person operation

● Height-Adjustable Design: Standard 1-3m adjustable suspension cord accommodates ceiling heights from 3 to 15m

● Maintenance-Free Features: Anti-soiling surface treatment reduces dust adhesion by 60%, eliminating professional cleaning during normal use

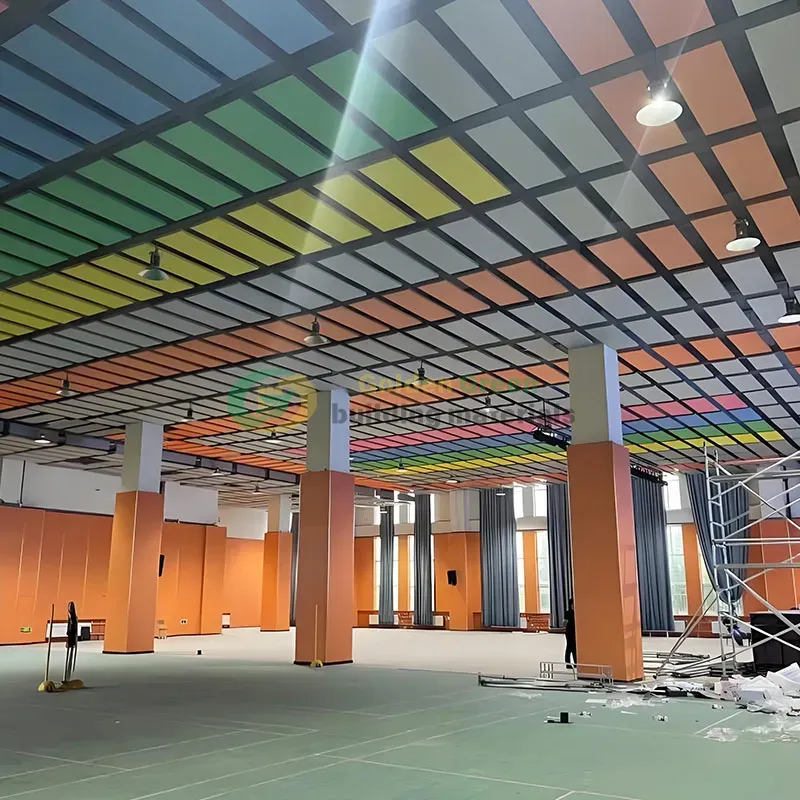

Application Scenarios

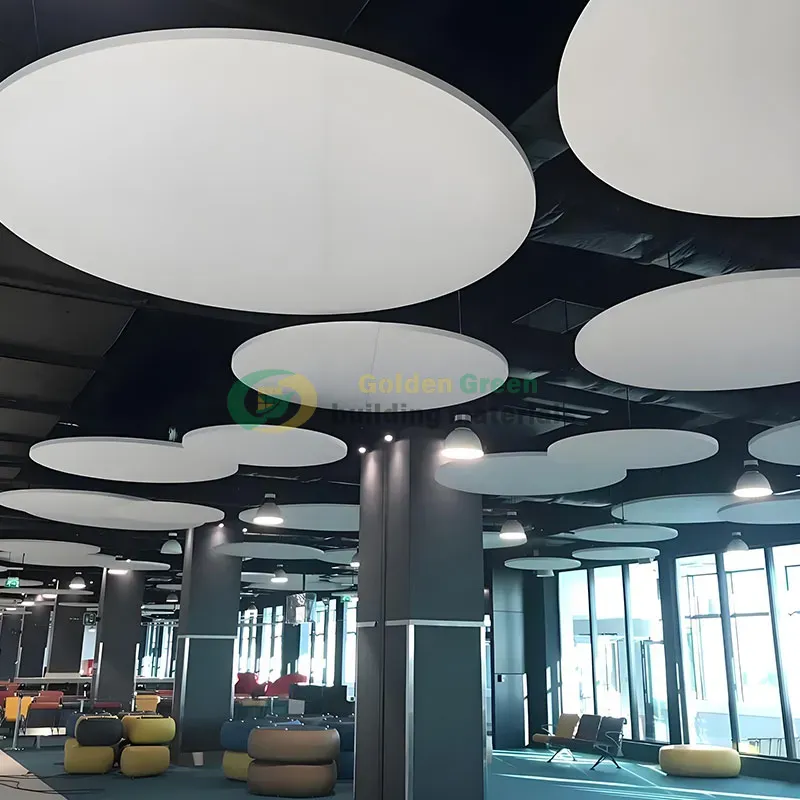

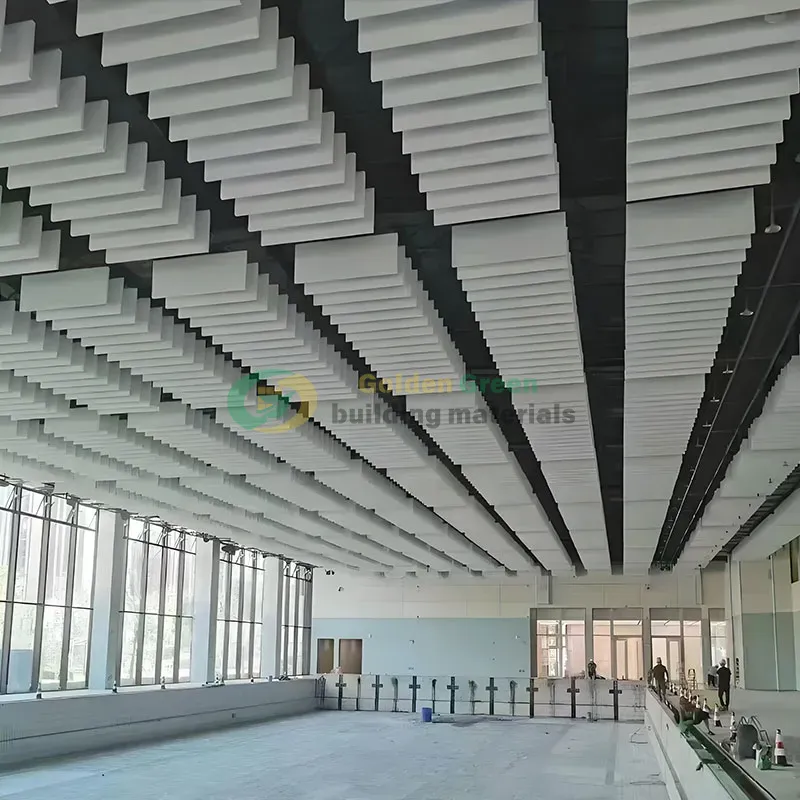

● Transportation Hubs: Airport terminals: High-speed rail waiting halls: Large subway stations: Shopping malls, convention centers, hotel lobbies, sports arenas/swimming pools, theaters/concert halls, academic lecture halls, open-plan offices, large production workshops, R&D centers, etc.

Customized Service Process

● Acoustic Assessment: Provide professional acoustic simulations to determine the optimal number and layout of suspensions.

● Visual Design: 3D renderings showcase the spatial effects of different arrangements and combinations.

● Sample Confirmation: Provide physical samples for acoustic testing and color verification.

● Engineering Solutions: Customized installation accessories and construction manuals.

● After-Sales Support: Provide a 10-year product performance guarantee and technical consultation.

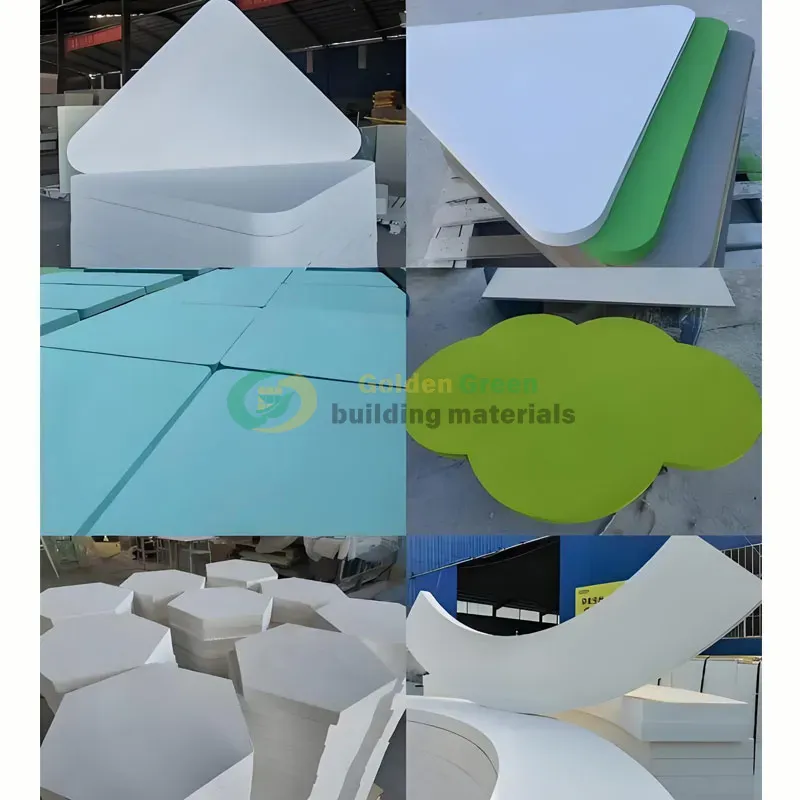

Product	Dimensions	Thickness	Installation
Rectangle	6001200,12002400	30/40	Single-piece suspension installation
Square	600600,12001200	30/40	Single-piece suspension installation
Triangle	1039*1200	30/40	Single-piece suspension installation
Trapezoid	86011701170	30/40	Single-piece suspension installation
Parallelogram	117010201170	30/40	Single-piece suspension installation

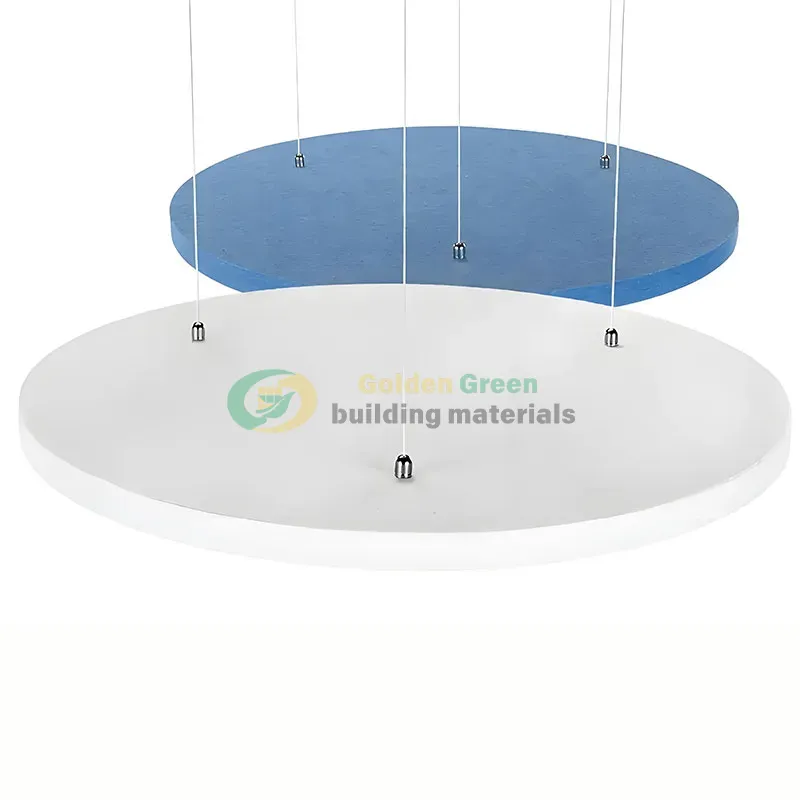

Circular	800&1200	30/40	Single-piece suspension installation
Hexagon	1170*1010	30/40	Single-piece suspension installation
Oval	1000*2400	30/40	Single-piece suspension installation
Concave-convex shape	1170*1140	30/40	Combination suspension installation
Teardrop shape	1200*1200	30/40	Combination suspension installation
Cloud-shaped	900*600	30/40	Combination suspension installation

To empower clients in building their exclusive brands, Golden Green Building Materials offers comprehensive OEM private labeling services, delivering deep customization from products to packaging:

● Brand Customization: Supports client logos and brand names, with packaging designs integrating brand VI systems (e.g., customized color boxes, tray labels).

● Consistent Quality: Shares production lines and quality control standards with proprietary brands, ensuring OEM products match original factory quality and meet ISO9001 certification.

● Flexible Minimum Orders: Low minimum order quantities starting at 500㎡, with mixed-batch customization options to meet trial production needs for small and medium-sized brands.

● Confidentiality Agreements: Strict confidentiality contracts safeguard client brand information and design plans. Dedicated account managers provide one-on-one support throughout the entire process. Surface patterns in a variety of options. Unleash your imagination.

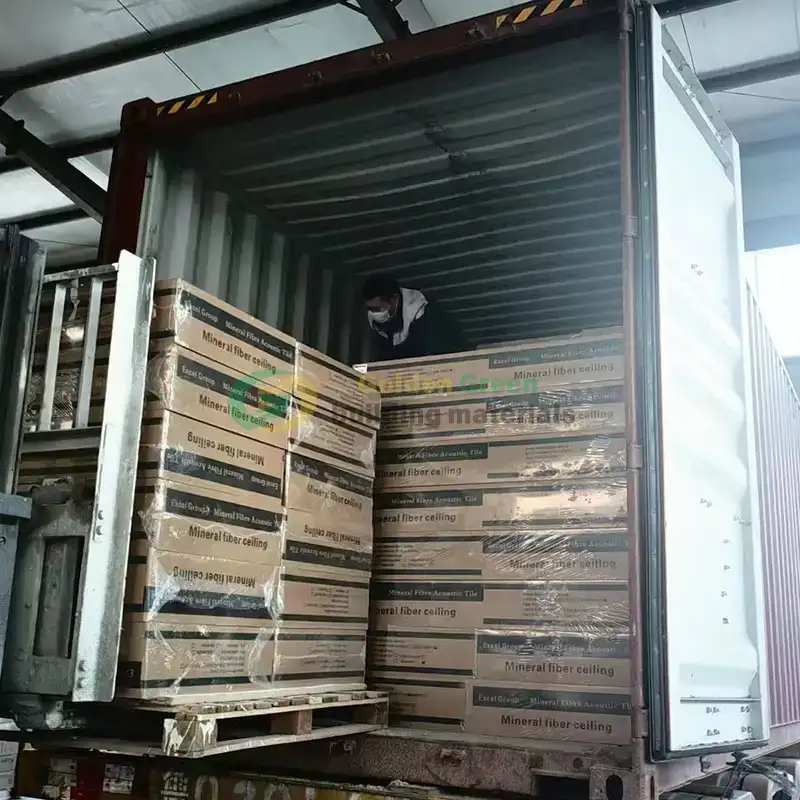

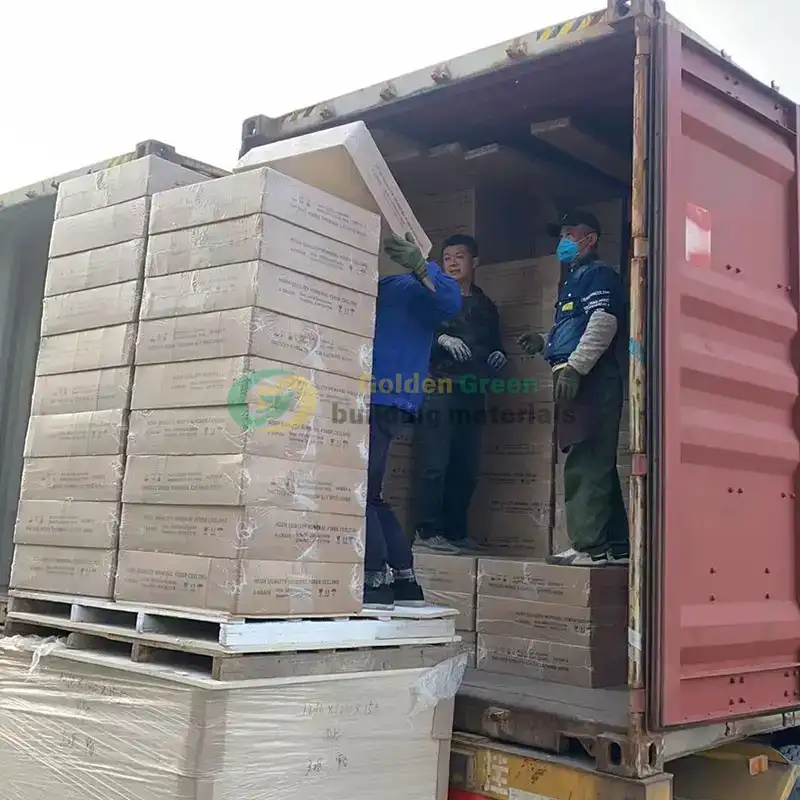

Production Capacity and Transportation Delivery

● Ample Production Capacity

● Our extensive transportation network ensures swift delivery of your required products to designated locations.

● Located approximately 300 kilometers from Qingdao Port and Rizhao Port, our factory leverages this natural proximity advantage to deliver your products with exceptional speed.

Quality Inspection

Sound absorption and noise reduction detection

FAQ

We provide free consultation to solve your problems.

Where is your factory?

Our factory is located in Tai'an City, Shandong Province, within 300 km of both Qingdao Port and Rizhao Port. With expressways connecting in all directions, the location offers strategic advantages and highly efficient logistics.

Are you a factory or a trading company?

We are an integrated manufacturer and distributor, with our founder bringing 30 years of expertise in the building materials industry. Both our production and sales teams possess over a decade of industry-specific experience.

What certification certificates do you have?

We are certified with ISO 9001, SGS accreditation, and National Certification, ensuring compliance with international quality and safety standards.

What is the OQ of the product and what is the production lead time afterordering?

Minimum Order Quantities (MOQs) vary by product, typically starting from 500pcs. Production lead time depends on your specific product specifications and manufacturing processes, but generally can be completed and delivered within 10 working days.

Can I get some samples?

Sure. The samples are free and you only pay for the first shipping.

What are the payment options?

T/T payment is preferred, other payment methods are also accepted.

Do you provide matching parts for the products?

Yes, we provide one-stop sourcing for all required matching parts, ensuring they arrive ready for immediate installation.

Do you provide product warranty and guarantee safe, secure delivery?

We understand your concerns and assure the quality of our materials and craftsmanship. We commit to your satisfaction with our products, using export-grade packaging to ensure secure transit.
